Transformer Training Pipeline Debugging

What's being tested

Candidates must show practical fluency debugging the entire Transformer training pipeline: data/tokenization correctness, attention and positional masking semantics, loss-to-logit alignment, and optimizer/numerical stability. Interviewers probe whether you can triage a failing run (diverging loss, NaNs, stalled training) by isolating data, model, and optimizer failure modes and propose low-risk fixes and diagnostic instrumentation. OpenAI expects an ML Engineer to demonstrate reproducible debugging steps, safe mitigations (e.g., mixed-precision fixes), and an understanding of tradeoffs for training stability at scale.

Core knowledge

• Tokenization & padding: Ensure pad_token_id is consistent between tokenizer and model; padding positions must be masked in attention and loss computation to avoid label leakage and inflated metrics.

• Attention masks: Distinguish causal mask (upper triangular for autoregressive) versus padding mask (per-token). Wrong shape/broadcasting is a common silent bug.

• Positional embeddings: Off-by-one or mismatched max length produces shifted predictions; check sequence lengths, truncation, and embedding table size.

• Loss alignment: For next-token prediction, mask the loss over padding and optionally over the input prompt; verify logits index ordering and whether labels are shifted by one (teacher forcing).

• Optimization details: AdamW hyperparameters (lr, betas, eps, weight_decay) and learning-rate schedulers (warmup, cosine) interact with stability; use linear warmup and conservative lr when diagnosing divergence.

• Mixed-precision training: With AMP/torch.cuda.amp, use dynamic loss scaling to avoid underflow/overflow; NaNs often mean overflow—try increasing loss scale or temporarily use full precision.

• Gradient issues: Monitor gradient norms and distribution; apply gradient clipping (global norm) and check for stale zero grads due to requires_grad=False or incorrect optimizer.zero_grad() placement.

• Parameter initialization & tying: Bad initialization (too large) or forgetting to tie embedding and output projection weights can slow convergence; confirm initialization schemes (Xavier/Kaiming) match activation functions.

• Numerical checks: Log max/min/mean of activations, logits, and gradients per layer; NaN/Inf propagation often originates in softmax exponentials or invalid layer outputs. For softmax, clipping logits prevents overflow.

• Metrics & evaluation parity: Ensure offline training metric (masked token loss) matches online eval definition; metric leakage arises from using unmasked losses or different vocab indices.

• Distributed training pitfalls: In DDP, ensure sync_gradients semantics, same random seed across workers, and consistent batch-norm/LayerNorm behavior; micro-batch accumulation affects effective lr—scale lr with batch size using linear-scaling rule.

• Instrumentation & reproducibility: Automate sanity checks: deterministic single-batch forward/backward, parameter checksum snapshots, and unit tests for masking shapes and label shifts.

Tip: When hunting NaNs, reproduce the issue on a single GPU/CPU with a single batch — it's faster and isolates distributed nondeterminism.

Worked example — Debug a transformer training pipeline

Frame the problem: ask whether the failure is reproducible, what the observed symptom is (divergent loss, NaNs, stuck at pretraining loss), and what changed recently (code, data, hyperparams). Declare assumptions: using PyTorch with AdamW and AMP, objective is next-token prediction.

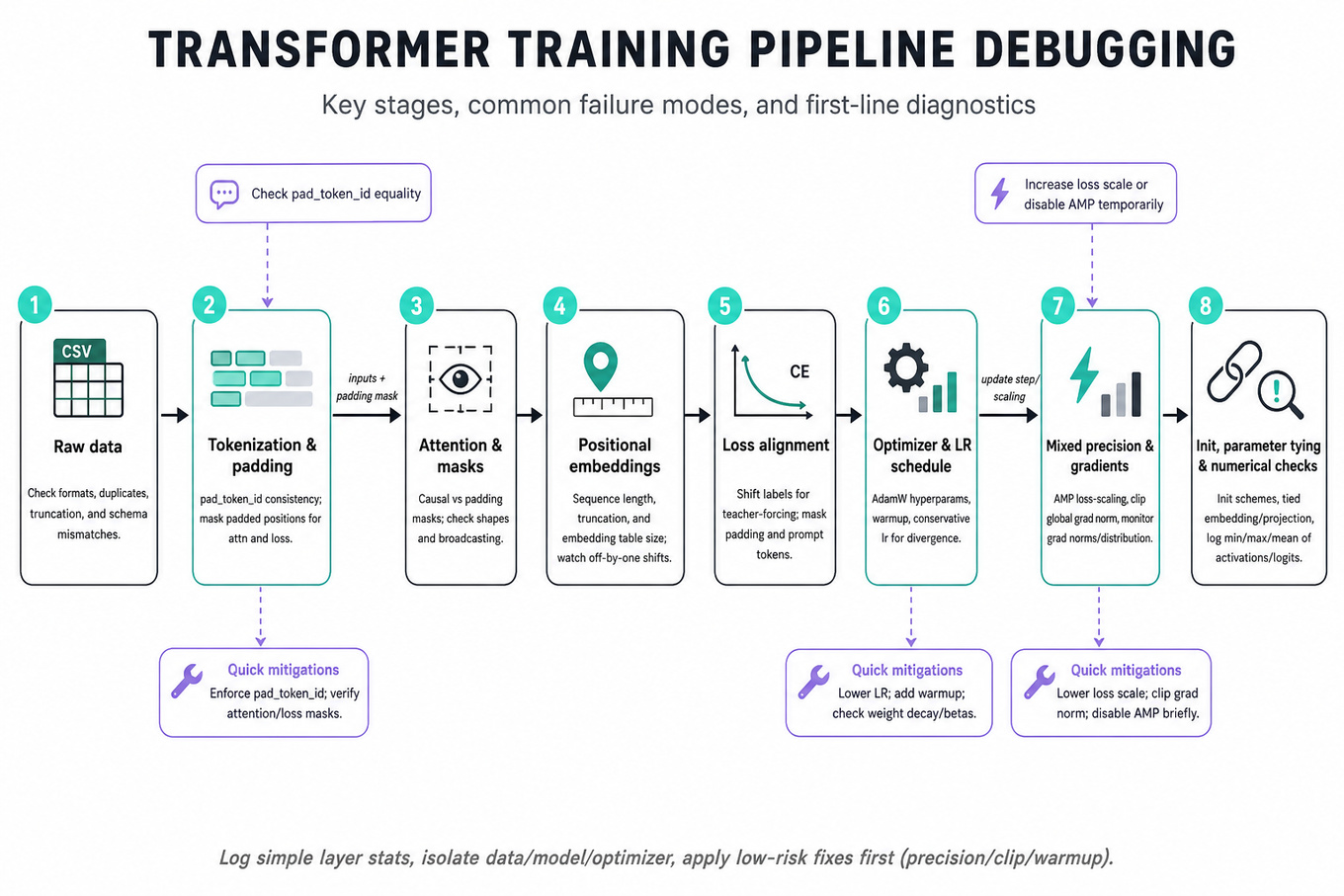

Skeleton of the investigation:

1. Reproduce on a single deterministic batch and run forward/backward to see where NaNs/Inf appear.

2. Verify preprocessing: tokenization, pad_token_id, label shifting, and that loss masking excludes padding.

3. Inspect model internals: attention masks shape and broadcasting, positional embedding range, LayerNorm behavior.

4. Check optimizer state and mixed-precision loss scaling; run with FP32 temporarily.

5. Monitor gradient norms, activation ranges, and weight updates.

Tradeoff to flag: switching to FP32 fixes numerical issues but doubles memory and slows training; using dynamic loss scaling with AMP is cheaper but may mask underlying exploding gradients. Conclude by proposing low-risk fixes first (zero warmup lr, clamp logits, increase loss scale) and longer-term fixes (add gradient clipping, adjust initialization). If more time: add unit tests for mask shapes, implement automated single-batch regression tests, and run a minimal integration test in CI.

A second angle — Debug a broken Transformer implementation

This variant focuses more on implementation correctness than training stability. Start by confirming API contracts (encoder/decoder shapes, mask semantics). Use deterministic unit tests: pass synthetic inputs where attention output is analytically predictable (e.g., identity-like attention) to validate masking and softmax numerics. Check parameter initialization and layer ordering (pre-LN vs post-LN) — a swapped LayerNorm/Residual order changes optimization dynamics. Also validate weight tying and embedding-output projection dimensions; a mismatch can silently broadcast, producing wrong logits. Here the emphasis is on small-scale functional tests before scaling to full training, whereas the training-pipeline case emphasizes numerical and data-driven failure modes.

Common pitfalls

Pitfall: Blaming the optimizer first. Many candidates immediately tune lr or betas without validating data and masking; this wastes time—first reproduce on a single batch and confirm loss-mask-label alignment.

Pitfall: Overlooking label shift. A tempting quick fix is to change loss normalization; the correct check is whether labels are shifted relative to logits (teacher forcing). Missing this yields plausible-looking but wrong training signals.

Pitfall: Hiding issues behind AMP. Switching to full precision fixes NaNs but can hide root causes like exploding activations or incorrect masking; document this as a diagnostic step, not a permanent solution.

Connections

Interviewers may pivot to adjacent topics like distributed training (gradient accumulation, DDP, bucket sizes), model serving (exporting attention masks to ONNX/TensorRT), or observability (production telemetry for drift and per-token loss). Being ready to discuss how debugging at training time changes monitoring needs in inference is useful.

Further reading

• Attention Is All You Need (Vaswani et al., 2017) — foundational architecture and masking semantics.

• Mixed Precision Training (Micikevicius et al., 2018) — practical techniques for AMP and loss scaling.
